Your Supply Chain Just Expanded
519-923-3153
Canadian manufacturer of expanded metal

Expandco is your new source of expanded metals manufactured in southern Ontario. Investing in the latest German-built machinery, Expandco introduces quality precision-made materials into your supply-chain.

Offering three styles of expanded metal: raised, flattened and grating, Expandco is ready for your order with custom sheet sizes, custom size openings and quick turnaround. Finishing options are also available, including galvanizing, painting and powder coating.

Expand your supply chain - contact Expandco for your next order of expanded metal.

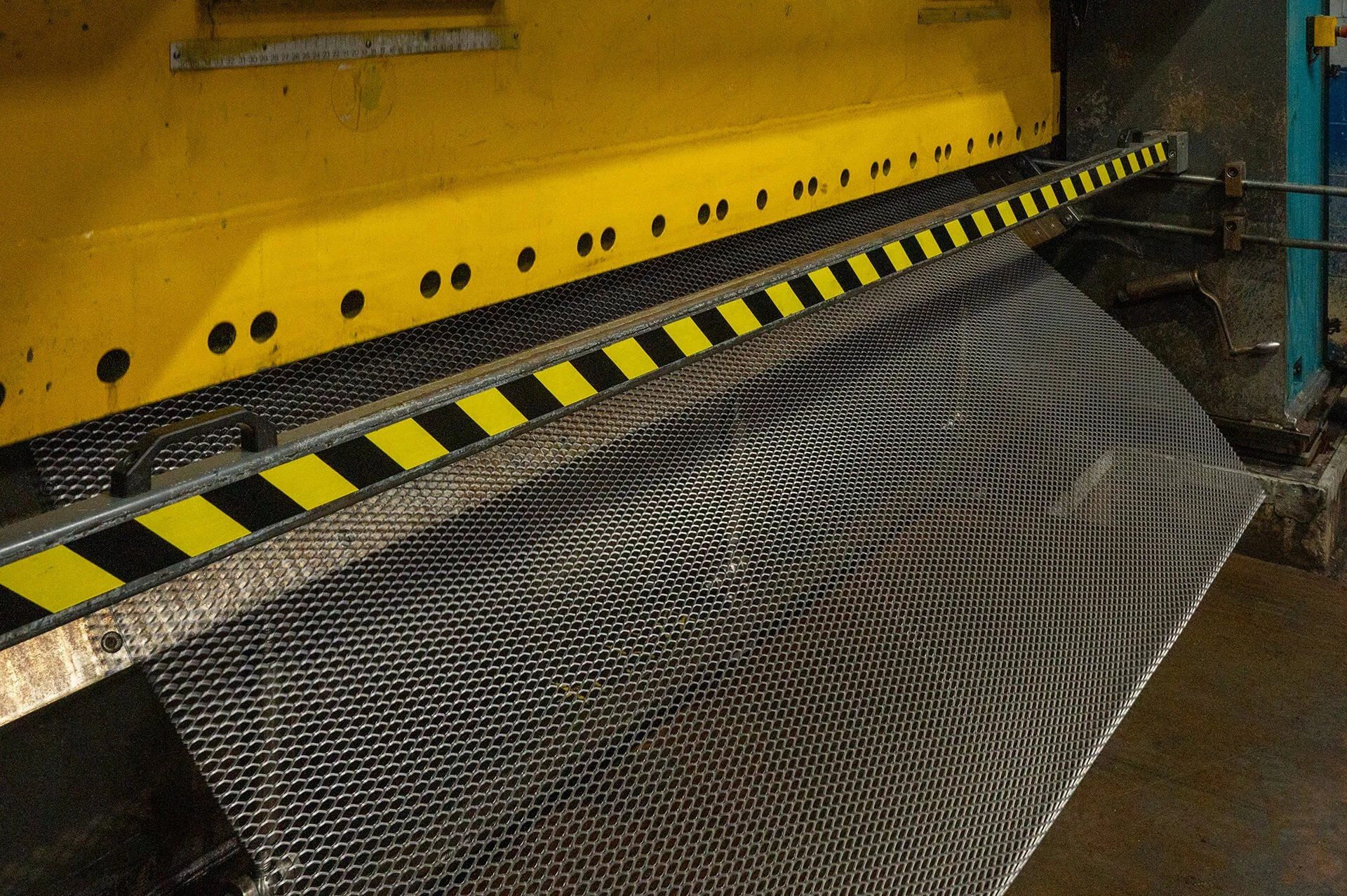

Expanded metal is the end result of forming diamond shaped openings in steel sheets by cutting slits and stretching it at the same time. By alternating the slits, this cold drawn process creates a metal product that is strong and incredibly useful.

Contact Us

Types

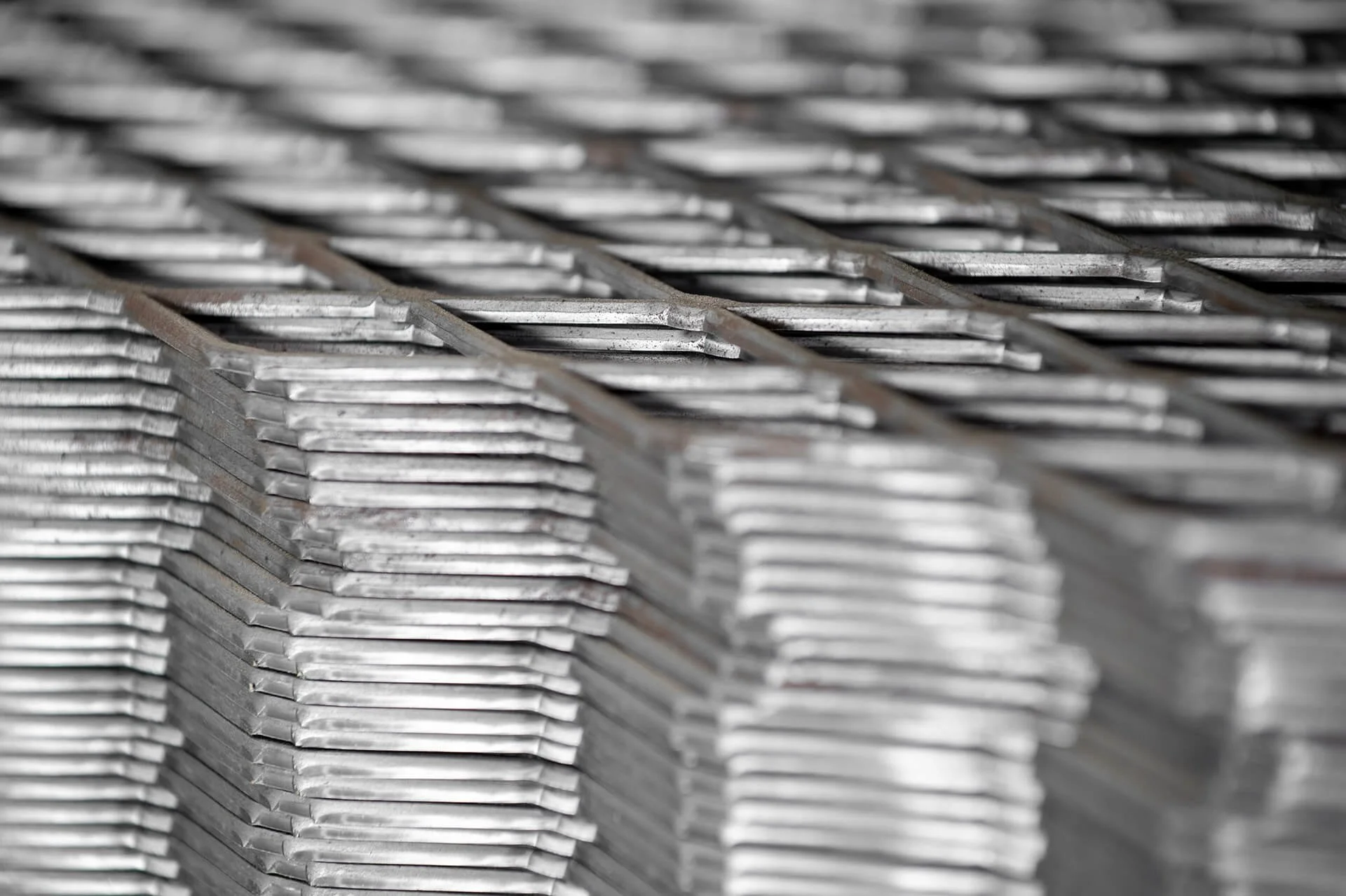

The stretched metal strands and bonds produced through the expansion process create an edged profile. After the metal sheet has been expanded a second process is undertaken to flatten the edged profile into a smooth surface. Creating a hexagonal opening, the same process of slitting and stretching the metal occurs to provide a lightweight open metal profile.
Style Weight
lbs/Sq.Ft.		 Opening Size (in inches) Strand Size (in inches) Approx.
Open Area %
SWO LWO Width Thick
1/2" - #16R 0.86 0.375 0.938 0.086 0.060 65
1/2"- #13R 1.47 0.312 0.938 0.096 0.092 57
1/2"- #13(.188)R 2.82 0.250 0.800 0.188 0.092 25
3/4"- #16R 0.54 0.813 1.750 0.099 0.060 78
3/4"- #13R 0.80 0.750 1.688 0.096 0.092 76
3/4"- #9R 1.80 0.688 1.563 0.148 0.134 68
1" - #16R 0.44 1.000 2.063 0.096 0.060 82
1" - #14R 0.78 0.875 1.563 0.125 0.074 75
1" - #10HR 2.00 0.725 1.563 0.180 0.135 60
1" - #7R 4.12 0.576 1.563 0.275 0.183 45
1 1/2"- #18R 0.20 1.313 2.625 0.067 0.048 90
1 1/2"- #16R 0.40 1.250 2.625 0.107 0.060 85
1 1/2"- #13R 0.60 1.188 2.500 0.104 0.092 85
1 1/2"- #10 (13)R 0.79 1.188 2.500 0.137 0.092 80
1 1/2"- #10R 1.70 1.000 2.375 0.200 0.135 74
1 1/2"- #10HR 2.00 0.830 2.375 0.240 0.135 72
1 1/2"- #9R 1.20 1.125 2.375 0.142 0.134 76
1 1/2"- #6R 2.50 1.000 2.313 0.201 0.198 69
Style Weight
lbs/Sq.Ft.		 Opening Size (in inches) Strand Size (in inches) Approx.
Open Area %
SWO LWO Width Thick
1/2"- #16F 0.82 0.312 1.000 0.096 0.050 63
1/2"- #13F 1.40 0.265 1.000 0.107 0.070 52
3/4"- #16F 0.51 0.750 1.750 0.111 0.048 74
3/4"- #13F 0.75 0.688 1.781 0.106 0.070 74
3/4"- #9F 1.71 0.563 1.688 0.165 0.120 63
1" - #16F 0.41 0.813 2.250 0.098 0.050 78
1" - #14F 0.63 0.790 2.000 0.125 0.070 80
1 1/2"- #16F 0.38 1.062 2.750 0.119 0.048 83
1 1/2"- #13F 0.57 1.062 2.750 0.116 0.070 80
1 1/2"- #10 F 1.65 0.900 2.560 0.188 0.110 63
1 1/2"- #9F 1.14 1.000 2.563 0.158 0.110 75
Style Weight in lbs per C.S.F. Standard Size in Feet Opening Size in Inches Center to Center of
Bond in Inches		 Strand Size in Inches Percent of
Open Area		 No. of
Diamonds
per ft. SWD		 Overall
Thickness
in Inches
Plain Galv. Width Length Width Length Width Length Width Thick
2 LB 200 218 4-6 8 1.000 3.600 1.333 5.330 0.235 0.135 77 9 0.460
3 LB 300 320 4-6 8-10 .938 3.438 1.333 5.330 0.261 0.183 73 9 0.500

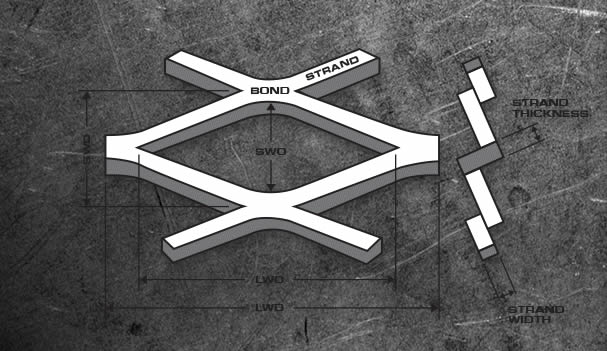

Strand detail diagram
SWD Short Way of Diamond - The measurement
of the shorter dimension across the diamond
opening.
LWD Long Way of Diamond - The measurement
of the longer dimension across the diamond
opening.
SWO Short Way of Opening.
LWO Long Way of Opening.
STRAND The metal strip forming the diamond.
STRAND
THICKNESS		 Gauge thickness of the base metal.
STRAND
WIDTH		 Amount of metal fed under dies to produce
one strand.
BOND The point where two strands connect.
OPENING
SIZE		 The area enclosed by bonds and strands.
